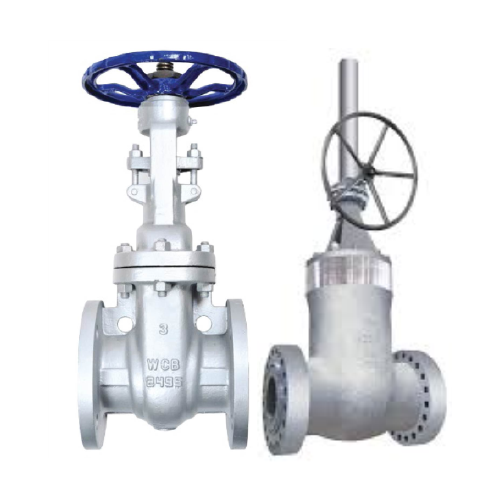

GATE VALVES
(BOLTED BONNET & PRESSURE SEAL BONNET)
- Size: 1/2"-36" (15NB - 900NB)
- Class: 150#-2500#
- CS / SS /Alloys / Monel / Hastalloys / Fabricated / Bronze MOC
- Solid / Flexible Wedge / Parallel / Double Disc
- Stem Protector, Linkage, Chain Pulley and Bypass arrangement on request
- Specially: Bellow Sealed, Cryogenic and High Temp
- Metal to Metal and Metal to soft Seat
- Manual operated / Gear box / Electrical, Pneumatic operated
- Design : ASME B16.34 / API 600 / API 602 / API 603 / IS 14846
- Face to Face : ASME B16.10 / DIN
- End to End: SW/BW Type / Flanged End / RTJ
- Pressure -Temperature Rating : ASTM B 16.34
- Screwed End Dimension : ASTM B 1.20.1
- BW End: ASME B16.25
- Test : API 598
- Fire Safe : NACE MR-01-75
- Special : ASME B16.5 / B16.47/DIN / BS / IS / JIS
Manava Valve Industries provide customers with a broad range of valve patterns and sizes, using only the highest quality materials. We are manufacturing and supply of Gate, Globe, Ball, Steam Trap, Stainer, Pressure Reducing Valve, Safety Valve, Sluice Valve, Plug Valve, Flanges & Pipe Fittings. With distribution in all over India and exported from our customer more, a key component of the company’s success is its outstanding customer service.
